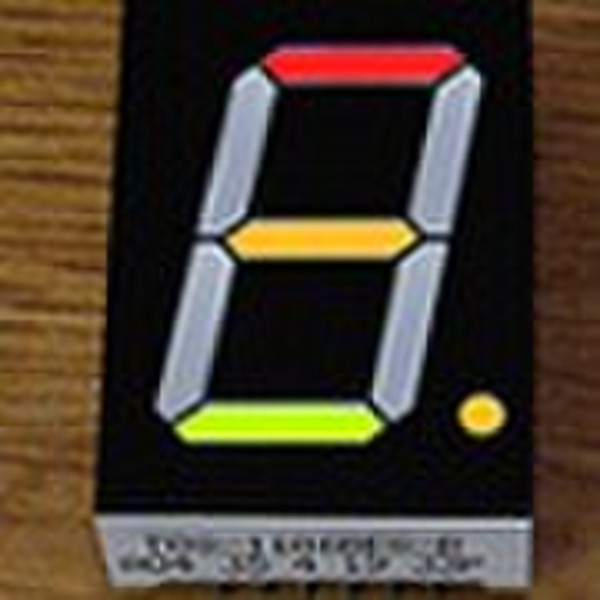

[Superdeals] 7 Segment Display

LED 7 Segment Display of 1inch 1. The digit display have different size from 0.28 inch to 20 inches. 2. The digits from one to four or even more. 3. Color: red, green, blue, yellow, white and so on. 4. OEM is also available. ABSOLUTE MAXIM RATING: (Ta=25) SYMBOL PARAMETERRED or Yellow greenUNITPADPower Dissipation Per Segment 60mWVRReverse Voltage Per Segment 5VIAFContinuous Forward Current Per Segment 25mAIPFPeak Forward Current Per Segment (Duty-0.1, 1KHz) 80mA--Derating Linear from 25 Per Segment 0.33MA/oCToprOperating Temperature Range -35oC to 85oCTstgStorage Temperature Range -35oC to 85oCSolder Temperature 1/16 inch Below Seating Plane for 3 Seconds at 260oC ELECTRO-OPTICAL CHARCHTERIXTICS: (Ta=25)SYMBOL PARAMETERTEST CONDITIONMINTYP.MAXUNTVFForward Voltage, Per Segment IF=20mA22.4VIRReverse Current, Per Segment VR=5V50uAlPPeak Emission Wavelength IF=20mA630nmlDDominant Wavelength IF=20mA625nmlSpectral Line Half-Width IF=20mA20nmIVLuminous Intensity Per Segment IF=1mA450750ucd ELECTRO-OPTICAL CHARCHTERIXTICS: (Ta=25)SYMBOL PARAMETERTEST CONDITIONMINTYP.MAXUNTVFForward Voltage, Per Segment IF=20mA22.4VIRReverse Current, Per Segment VR=5V50uAlPPeak Emission Wavelength IF=20mA570nmlDDominant Wavelength IF=20mA572nmlSpectral Line Half-Width IF=20mA20nmIVLuminous Intensity Per Segment IF=1mA260530ucd
