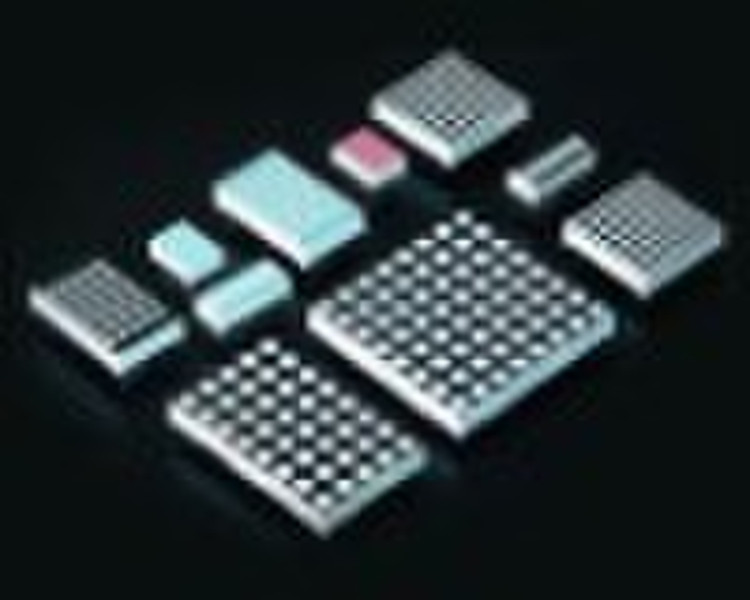

LED Dot Matrix
original price: 0,05 USD
Brenda Zhang
Contact person
Basic Information
| Usage | Indoor |
|---|---|
| Tube Chip Color | Green |
| Display Function | Animation |
| Place of Origin | Zhejiang China (Mainland) |
| Brand Name | Sangao |
| Model Number | SGWM20088 |
Specifications: 1. Hole size: 1.9mm, 3.0mm, 3.7mm, 4.8mm, 5mm,7.62mm,10mm, 20mm; 2. Color: red, yellow-green, amber, orange, blue and so on; 3. 5x7dots, 5x8dots, 8x8dots; 4.Low power consumption 5. Meet RoHS, CE, ISO certifications. Dot matrix LED display APPEARANCEFACESEGMENTCHIPSOURCE COLORGray,BlackWhiteAlInGaPHigh Brightness RedABSOLUTE MAXIM RATING: (Ta=25°C) SYMBOLPARAMETERREDUNITPADPower Dissipation Per Segment 60mWVRReverse Voltage Per Segment 5VIAFContinuous Forward Current Per Segment 25mAIPFPeak Forward Current Per Segment (Duty-0.1, 1KHz) 80mA--Derating Linear from 25°C Per Segment 0.33MA/°CToprOperating Temperature Range -35°C to 85°CTstgStorage Temperature Range -35°C to 85°CSolder Temperature 1/16 inch Below Seating Plane for 3 Seconds at 260°C
Delivery terms and packaging
Packaging Detail: outer: cartons; inner: foam or tubes Delivery Detail: 25days
Port: Shanghai
